Aeroflow Performance head studs greatly improve your cylinder head-to-block sealing compatibilities. This is important in engines with high power adders such as turbochargers, superchargers or nitrous. They can even be a great addition to a mildly modified build as insurance against failure. All head studs provide a more accurate and consistent torque loading over traditional head bolts.

These head studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these studs are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened washers for an even load distribution and accurate torque readings.

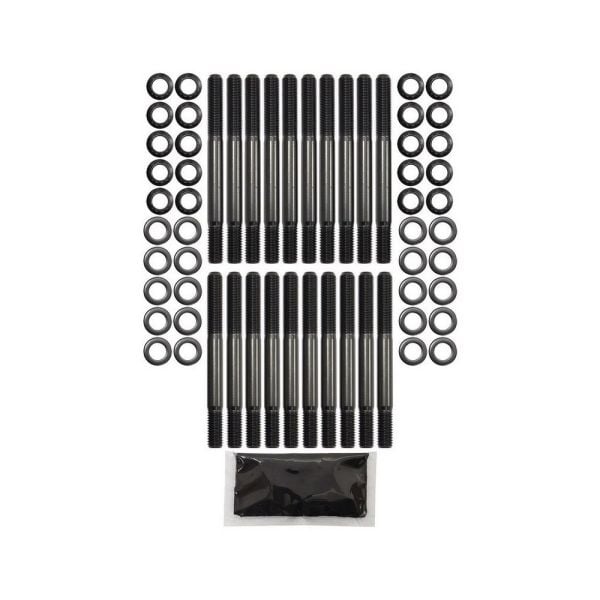

Kit Contains:

• 144.80mm Overall Length
• 61.15mm Shank Length.
• 1/2"-14 thread into Engine Block.
• 1/2"-20 thread on Nut End.

8 x Short Studs

• 134.90mm Overall Length
• 51.55mm Shank Length.
• 1/2"-14 thread into Engine Block.
• 1/2"-20 thread on Nut End.

20 x 12 Point Nuts

20 x Flat Washers

Important Information:

Torque Recommendations
105 ft. lbs or 142Nm
