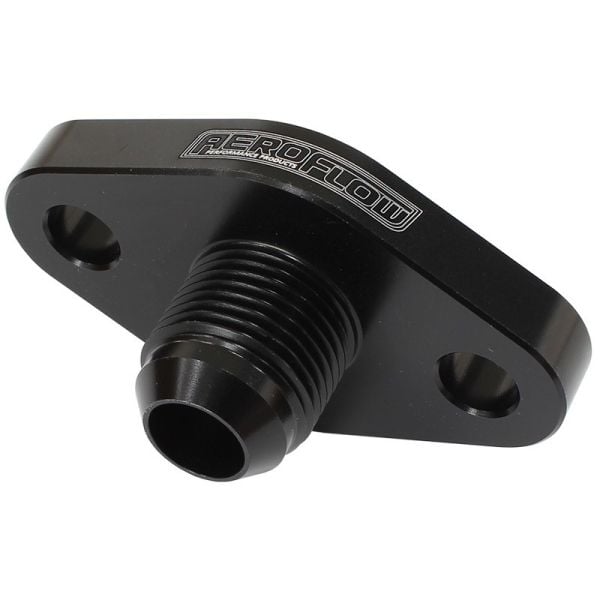

Turbo Drain Adapter. -10AN ORB outlet, 51mm bolt centre, Black Finish

Turbo Oil Drain Adapter With O-Ring Seal.

-10 AN male with 50.8mm hole centres to suit turbos with 50.8mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8" hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
