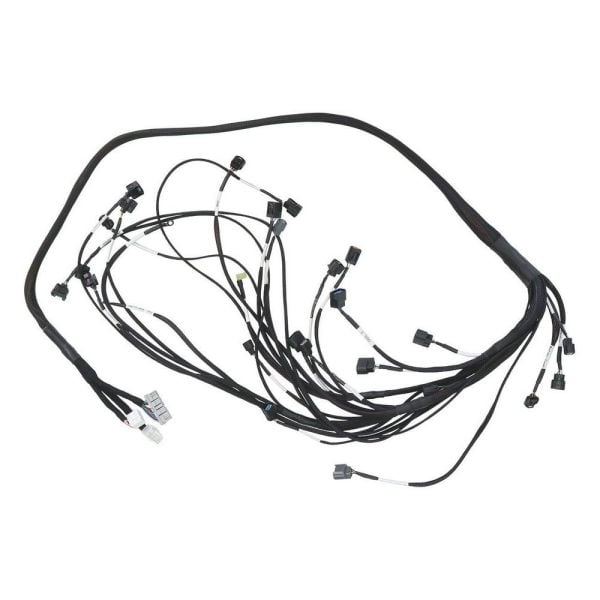

This Aeroflow Performance standalone harness is designed to replace 2002-2004 Integra DC5 & EP3 Type-R engine wiring harness. This harness can also be used as a universal K series harness forother Honda models when using the K20 platform. The alternator plug, knock sensor and starter motor plug is integrated into the engine harness but the alternator & starter power cables are NOT included. A single wire temperature sensor wire for k-swap cars with stock clusterand two extra wires run from the ECU to under the intake manifold for a EVAP Delete. Extra-long wires for both style vehicle speed sensor locations and an extended length of harness at the ECU will allow flexible routing options when mounting the ecu and routing through the firewall.  All plugs are clearly labelled for an easy install.

Note: to use this harness on a 05-06 integra or Cl7/9 Transmission will need to swap the plug & pinout to suit the VSS.

Note: NO water coolant temp sensor is locatedin this wiring harness and must be wired separately.
