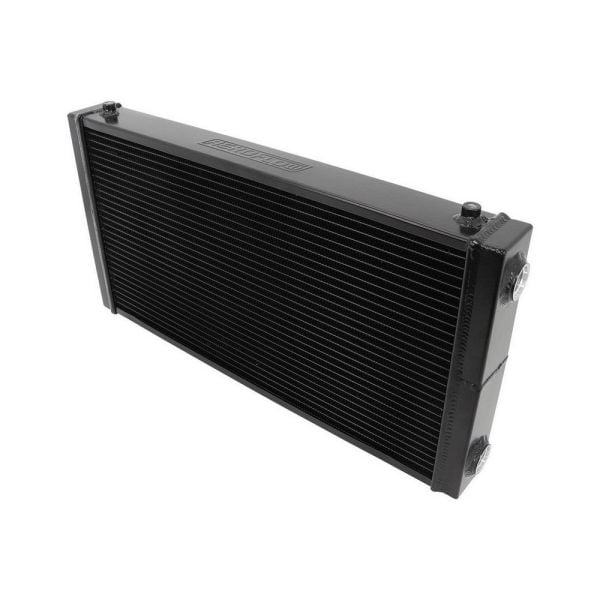

The Aeroflow Performance universal heat exchanger is a dual pass/single row design which allows the coolant to flow across the core of the heat exchanger two times before exiting the radiator for the lowest outlet temperature possible. In a liquid-to-air intercooler system or a supercharger setup, the air is cooled by liquid, typically water. These systems require a supplemental heat exchanger to cool the liquid running through the intercooler. it is recommended this type of heat exchanger is front mounted and/or accessible to fresh air flow for optimal performance.

Overall Dimensions:

• Width (Tank end to Tank end): 605mm
• Thickness: 70mm
• Height: 310mm

Core Dimensions:

• Width of Core: 535mm
• Thickness of Core: 70mm
• Height of Core: 300mm
• M8 x 1.25mm mounting bungs
• 1/8" NPT bleed port on top end of tank
