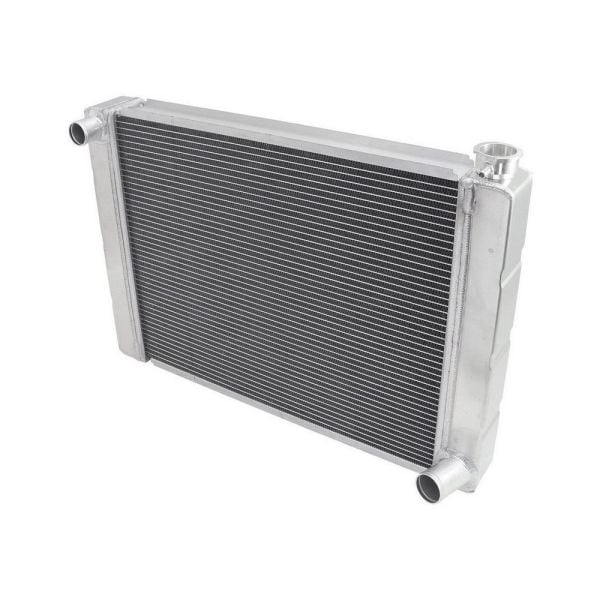

Aeroflow Performance line of universal aluminium radiators makes it easy for budget-minded car builders to get a professional quality aluminium radiator. Constructed from aluminium, we braze the radiator assembly which minimizes metal fatigue and allows for maximum durability and performance.

These single-pass designs use one row of 1" wide aluminium tube across left to right or right to left of the radiator. Meaning coolant flows from inlet to outlet via rows of one tube. This single pass radiator is great for most street applications with stock or mildly modified engines. Single pass design radiators will have the inlet and outlets on opposite sides.

These universal radiators are not made for any one specific car and will require modifications to fit your application. All radiators do not have any mounting brackets, this means you can easily adapt our radiator to any application.

Dimensions:

• Overall Height - 469mm
• Overall Thickness - 78mm
• Overall Width - 688mm
• Core Height - 448mm
• Core Width - 554mm
• Core Thickness - 58mm

*Refer to instructions/photos for further dimensions

• Mounting Bungs 5/16"-18 x 4
• Radiator Hose Inlet Size - 1.5" (38mm)
• Radiator Hose Inlet (upper) Location - Australian Passenger side
• Radiator Hose Outlet Size - 1.75" (44mm)
• Radiator Hose Outlet (lower) Location - Australian Drivers side
