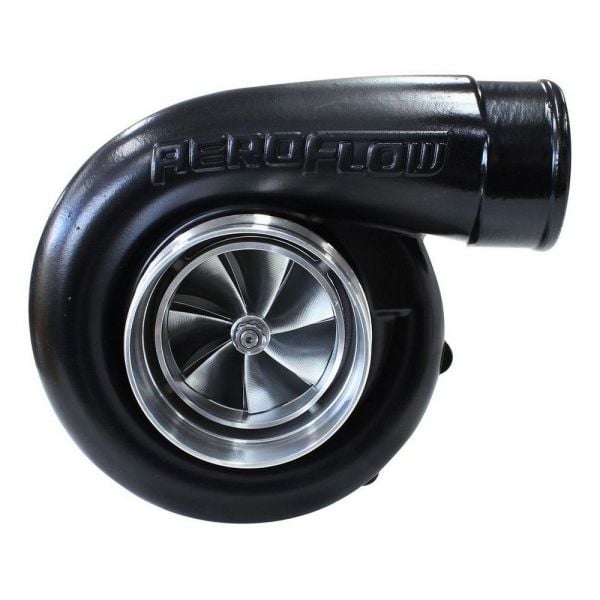

Boosted 7885 T4 1.25 Turbocharger 1450HP, Hi Temp Black Finish. External Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.

BOOSTED 7885 T4 Pro Compact Turbocharger Specifications

• Recommended horsepower rating:  500-1450HP
• Recommended engine displacement:  3.0L to 7.0L
• 360° journal bearing
• Point Milled 7075 billet 7 + 7 compressor wheel
• Ported shroud compressor cover
• This is an oil cooled turbocharger
• External wastegate sold separately
• Inlet flange gasket and turbo drain gasket included in turbo kit
• Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
• T4 twin entry turbine inlet flange
• SiMo-nodular cast iron rear housing
• V-Band turbine outlet flange
• 1/8" NPT oil feed fitting (sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
• 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications

• Inducer:  78mm
• Exducer:  102.40mm
• Extended Tip:  106.30mm
• Compressor Inlet:  5" slip fit
• Compressor Outlet: 3" slip fit

Turbine Specifications

• Inducer:  89mm
• Exducer:  85mm
• A/R:  1.25
• Turbine Inlet Flange:  T4
• Turbine Outlet Flange:  V-Band (AF8080-1026)

Wastegate

• External wastegate
