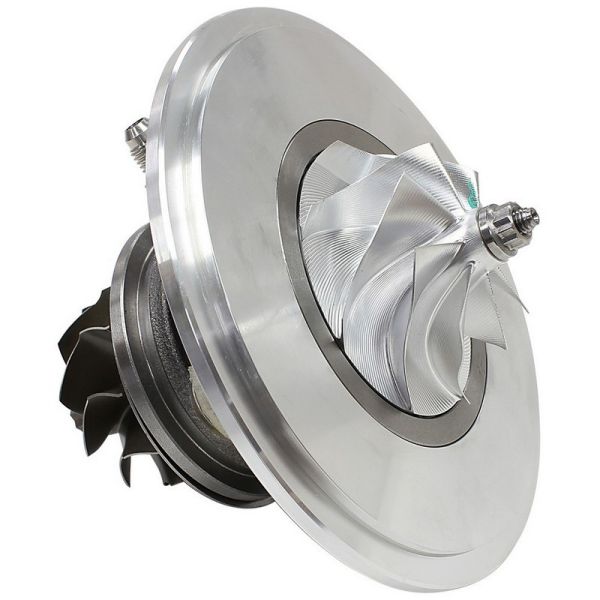

Boosted 5455 Turbocharger Core Only. Dual Ball Bearing, No Housing

Boosted Turbocharger Replacement Core.

As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hap that has damaged either of the wheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands that have a similar core design.

BOOSTED 5455 Core Specifications

• Recommended horsepower rating:  340-650HP
• Recommended engine displacement:  1.8L to 3.0L
• Dual ceramic ball bearing
• Point Milled 7075 billet compressor wheel
• External wastegate sold separately
• Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
• M14 x 1.5mm coolant port thread
• 7/16"-24 oil feed fitting thread
• 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications

• Inducer:  54mm
• Exducer:  71mm
• Extended Tip:  73.79mm

Turbine Specifications

• Inducer:  60mm
• Exducer:  55mm

Wastegate

• External wastegate
