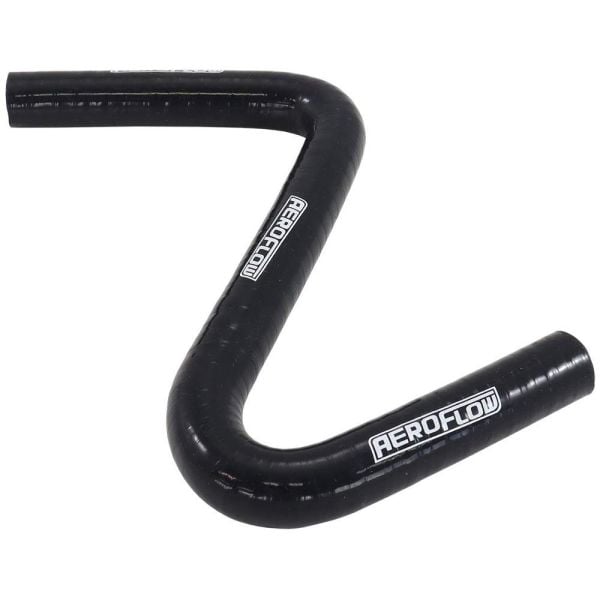

Aeroflow Universal Z Bend Silicone Hose are can be configured into the various forms demanded by today's complicated and cramped engine bays. They can also be used in many industrial applications. These flexible hoses feature a 90-degree bend and a 135-degree bend ensuring multi-fit applications.

- Constructed from a 3 Ply Nomex hose

- Excellent ply adhesion from the inner core to the outer layers.

- Bright gloss finish

- Not recommended for use with oil and fuel.

- Weather resistance to: harsh sunlight, dry conditions and rain water.

- Working temperature -60 to +180 Celsius (-75 to +350 Fahrenheit).

• Internal Diameter - 5/8" (16mm)
• Wall Thickness - 5mm
• Outside Diameter - 26mm
• 90 Degree Bend Leg Length - 160mm
• Straight Leg Length - 200mm
• 135 Degree Bend Leg Length - 130mm
• Suits Worm Drive Clamp - AF23-1832
