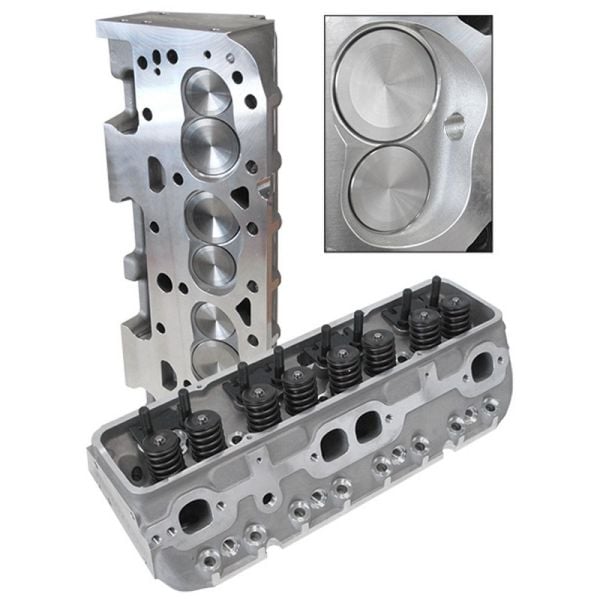

Aeroflow Complete 200cc Aluminium Cylinder Heads with 64cc Chamber Pair AF95-2350

Part No.
AF95-2350

Aeroflow Complete 200cc Aluminium Cylinder Heads with 64cc Chamber Pair AF95-2350

Special Price $2,304.90 Regular Price $2,495.00
You Save $190.10 off RRP

Vehicle Specific Product

Check compatibility
Buy Now, Pay Later
4 payments of $576.23

Bulky

Add to Wish List
Aeroflow Complete 200cc Aluminium Cylinder Heads with 64cc Chamber Pair AF95-2350

Aeroflow Complete 200cc Aluminium Cylinder Heads with 64cc Chamber Pair AF95-2350

Special Price $2,304.90 Regular Price $2,495.00
You Save $190.10 off RRP

Description

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business. Aeroflow's Small block Chevy cylinder heads are designed for entry-level street performance engines and ideal for operating in the idle to 6500 rpm range. Made from A356 aluminium castings. These complete heads include larger-than-stock 1.43" (36.3mm) diameter dual valve spring to handle up to 0.575" (14.61mm) maximum valve lift. Recommended spark plugs are 14mm x 3/4" reach with flat gasketseat. Includes valves, valve springs, retainers & locks, guide plates and 7/16" rocker studs. Head Specs: Chamber Volume: 64cc ChamberIntake port volume: 200ccIntake valve size: 2.02" Exhaust valve size: 1.60"Valve spring diameter: 1.430" (36.3mm)Spring installed height: 1.85" @ 100lbsMaximum valve lift: 0.575" (14.61mm) @ 300lbsRocker stud diameter: 7/16" Pushrod diameter: 5/16" (width of slot in guide plate)Spark plug style: Straight Flow Chart cfm @ H2O .100" .200" .300" .400" .500" .600" 2.020 Intake N/A 125 183 231 254 262 1.600 Exhaust N/A 103 145 165 172 177

Note: Suit Small Block Chev 327-350-400
