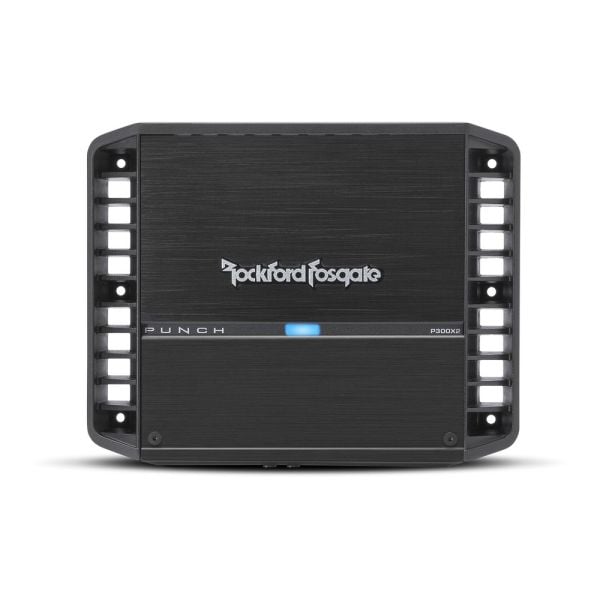

The Punch P300X2 is a 2-channel stereo amplifier capable of producing 150 Watts into each channel at 2-Ohms. The P300X2 amplifier is great with full-range or component systems and can be bridged for use with smaller subwoofers.

The P300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the P300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.

Features At A Glance

• High level input capable with Auto Turn-On circuit
• 12dB/octave Butterworth crossover
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz
• Cast aluminum heatsink
• Muted turn on
• Stealth top mounted control panel
• Short circuit protection
• Over current protection
• 1 Year Warranty

Technologies:

CE Compliant

It proves to the authorities, but also to the buyer -or user- that this product fulfills all essential safety and environmental requirements as they are defined in the so-called European Directives.

The ce marking directive (93/68/EEC) was adopted on 07-22-1993 and updated as 768/2008 EC on 13-8-2008.

The directive gives a detailed description of the initials CE and any other marks specific to a particular directive and the many ways conformity may be acquired.

In return for fulfilling the CE marking requirements, the manufacturer or its agent gets the permission to cover the entire European market using only one approval procedure for the topics covered in the applicable directives.

No member state of the European Community can refuse trade of any (electronic or electrical) product that has been CE marked (unless fraud suspected). For some products however, national regulations exist, as long as the requirements covered in these national regulations are not covered by a pan-European Directive.

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CTA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

TRANS-ana

• Simplifies signal path
• Greater reliability
• Exceptional sound quality

TRANS-ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

DTM

Heat is often inefficiently dissipated across a heatsink causing "hot spots". This impacts important design goals, which are:

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

MEHSA³

3 (Maximum Efficiency Heat Sink Application - gen. 3) is a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques, using the exact same components. A multi-layer insulated metal substrate operating with minimal thermal resistance spreads heat both downward & outward to quickly dissipate heat from each device across the heatsink. This process combined with our optimized heatsink designs, DSM (Discrete Surface Mount) technology and MOSFET devices, allows Rockford Fosgate to squeeze more watts per cubic inch from every output device as well as provide consistent thermal stability. The 3rd generation creates a dielectric layer between the ceramic topside and the aluminum base that retains all of the electrical isolation and capacitive coupling of the original MEHSA material increasing it's thermal conductivity. The higher power handling results in a 20% reduction in thermal impedance. ">MEHSA³reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

The NOMAD circuit accomplishes just that. It's a totally new and very high tech method of dealing with device current and voltage parameters, without being affected by other factors such as heat. Our approach to "real time" protection is one that uses a mathematical transformation which eliminates the problems encountered with trying to do real time multiplication of instantaneous device voltage and current.

Essentially an analog computer calculates at each instant, the maximum allowable level of safe current for each output device, based on their instantaneous voltage drop. This allows the protection to be much more precise than ever before, and ensures reliability.

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

Engineered In The USA

1. an embodiment or personification, as of a principle, attitude, or view of life
2. a graphical image that represents a person
3. a symbol of ownership

For every Rockford Fosgate product involved in our New Product Development cycle, team members have their Rockford Fosgate Avatar placed on the pc board. This avatar is their way of putting their personal signature on every piece produced to signify "I have done everything possible to ensure our customer receives the best possible product we could develop".

Rockford Fosgate takes pride in knowing that our products are designed and engineered by Rockford Fosgate Fanatics in Tempe, AZ, USA. This is just a part of what makes a Rockford Fosgate customer a Fanatic for Life.

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered ...
