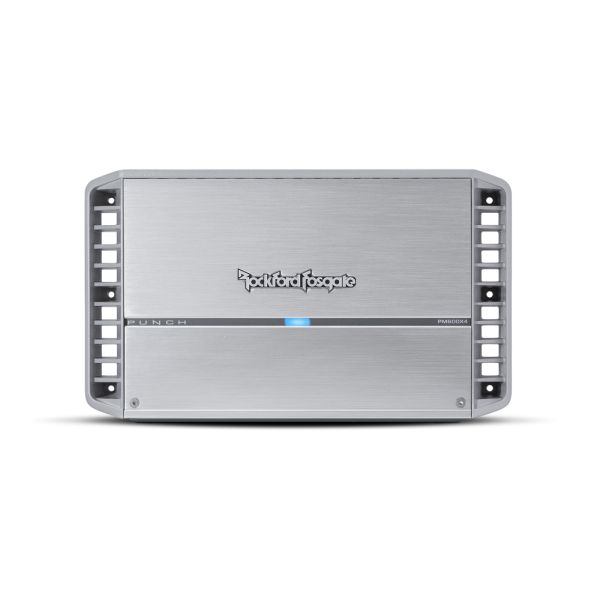

The PM600X4 is a 600 Watt 4-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.

The Punch PM600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.

Features at a Glance

• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• RCA pass-thru outputs
• 12dB/octave Butterworth crossover
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• On-board Punch EQ with +18dB boost @ 45Hz
• Cast aluminum heatsink
• Stealth top mounted control panel
• Muted turn on
• Short circuit protection
• Over current protection
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware
• 2-Year Warranty

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CTA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

TRANS-ana

TRANS-ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

Element Ready™ | Amps

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

MEHSA³

MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
