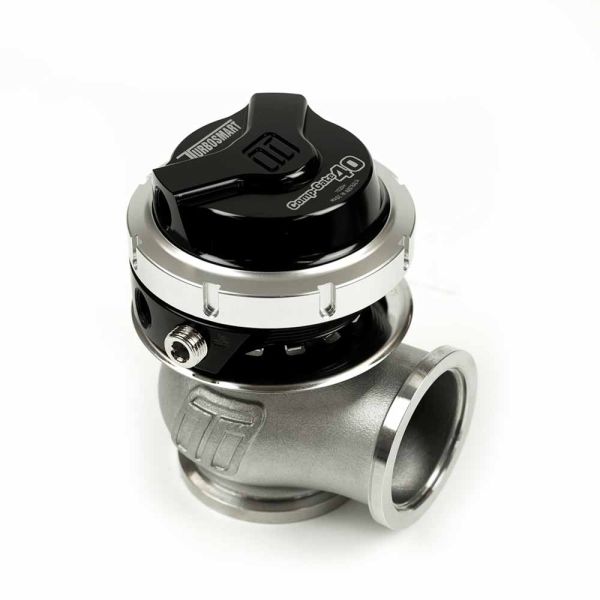

The GenV WG40 CompGate40 External Wastegate is a Motorsport proven, cost effective external wastegate – The Highest Flowing Wastegate of its kind. The GenV provides extensive user configuration, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature a unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In

• Black, Blue, Red, Purple & Limited Edition Platinum colours
• Optional Wastegate Position Sensor Upgrade
• Compressed Gas (ex: Co2) Version
• Motorsport Version (CFD driven Heat sink design)
• HP (High Pressure Version) Up to 50psi
• eWG (Electronic Actuated) Version

Features

• Class Leading, Thermal Performance
• Class Leading, CFD & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• 17/7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps

Supplied With

• GenV Wastegate unit
• All Springs Included in Box
• Wastegate Pre-fitted as Per Description
• GenV SS316 Valve seat
• GenV V-Band Clamps
• GenV Inlet & Outlet Weld Flanges
• Mounting Bolts and Nuts
• Collar tool (master/slave)
• 3, 5, 7, 14 psi spring kit (1x spring installed)
• 4 x 1/8” NPT plugs (1x installed)
• 2 x 1/8” NPT nipples
• Turbosmart Decal
