Whiteline Trailing Arm Pivot Bush Kit W63452G

Name: Whiteline Trailing Arm Pivot Bush Kit W63452G
Brand: Whiteline
SKU: WHITELINE-W63452G
Price: 60.00 AUD
Availability: InStock

Part No.

W63452G

Whiteline Trailing Arm Pivot Bush Kit W63452G

Add to Compare

Special Price $60.00 Regular Price $95.00

You Save 37% off RRP

Vehicle Specific Product

Check compatibility

Buy Now, Pay Later

4 payments of $15.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Whiteline Trailing Arm Pivot Bush Kit W63452G

Special Price $60.00 Regular Price $95.00

You Save 37% off RRP

Description

Rear Trailing Arm - Centre Pivot Bushing Kit

Suffering uneven tyre wear, unbalanced braking or a less predictable rear end while cornering. It could be your trailing arm centre pivot bushings have failed. Whiteline's centre pivot bushings not only boasts the latest in bushing material technology but a high performing PTFE inner lining boasting an extraordinary low coefficient of friction. This inner lining eliminates the need to lubricate the bushing on installation and therefore makes these bushing 'grease free'! Backed up by a Limited Lifetime Warranty. Replace these worn parts with Whiteline bushings ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

Kits Required:	2
Warranty:	Limited Lifetime Warranty

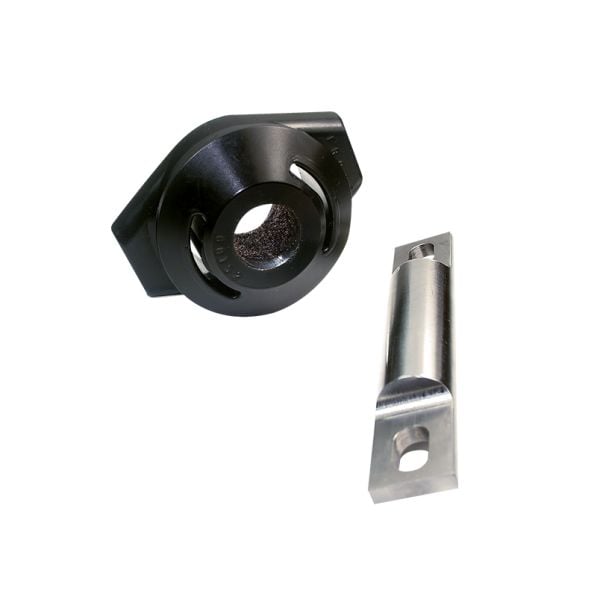

Kit Contents:	1 Bushing, 1 Pin

Important Notes: Single - 80mm OD - fitter friendly design

Features:

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
Specially bonded design for optimised strength typically required in high load bearing applications.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Kit Specifications:

Bush Type	Bush Qty	OD A	ID B	L C	FL D	FLOD E	C/Tube QTY	C/Tube Size	Similar Bushing Size
10	1	80 mm	22.3 mm	37.75 mm	13 mm	100 mm

Installation:

Install Guide	Fitment Time	Degree of Difficulty	Recommend Wheel Alignment
	3 hrs	DIY - With specialist tools	Yes

Press Sleeve # (IN)	Press Plate # (IN)	Press Sleeve # (OUT)	Press Plate # (OUT)	Support Sleeve #	Press Plate #	Threaded Rod #	Press In/Out Kit
N/A	EVEN B	11	ODD B	14	EVEN B	M16	WTK001

Use the above press Sleeves, Plates and Rods from the Whiteline Press In/Out kit WTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Whiteline bushings.

Packaged Weight and Dimensions:

Units	Weight	Length	Width	Height	Fitment Difficulty
cm/kg	0.48kg	7cm	14cm	20cm
in/lbs	1.058lbs	3"	6"	8"

Vehicle Applications:

W63452G is suitable for the following vehicles. Select a vehicle for specific fitment details:

Honda Civic 1988-1993 - Civic IV Gen EC, ED, EE
Honda Civic 1991-1995 - Civic V Gen EG, EH
Honda Civic 1994-2000 - Civic VI Gen EJ, EK, EM
Honda Concerto 1988-1993 - Concerto HW, MA
Honda CR-V 1997-2001 - CR-V RD1-RD3
Honda CR-X 1987-1992 - CR-X ED, EE
Honda CR-X 1992-1998 - CR-X EG, EH
Honda Integra 1993-2001 - Integra DC2, DC4
Honda Integra 1999-2001 - Integra DC2, DC4 Type R

Compatibility

HONDA

CRX

1987 - 1992 Petrol Engine 1.6 i 16V (ED9) ED,EE Coupe 96KW

Positions: Rear Axle,both sides,Trailing Arm,Centre
Outcome: Trailing Arm - Centre Pivot Bushing Kit
Quantity Per Vehicle: 2
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Single - 80mm OD - fitter friendly design
PAFootNote1: Single
PAFootNote2: 80mm OD
PAFootNote3: Fitter friendly design

1992 - 1998 Petrol Engine 1.6 i VTi (EG2) EH,EG Targa 118KW

Positions: Centre,Rear Axle,both sides,Trailing Arm
Outcome: Trailing Arm - Centre Pivot Bushing Kit
Quantity Per Vehicle: 2
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Single - 80mm OD - fitter friendly design
PAFootNote1: Single
PAFootNote2: 80mm OD
PAFootNote3: Fitter friendly design

CIVIC

1991 - 1993 Petrol Engine 1.3 16V (EG3) EG,EH Hatchback 55KW

1995 - 2000 Petrol Engine 1.6 i (EK1) EJ,EK Hatchback 84KW

1995 - 1998 Petrol Engine 1.6 VTi (EK4) EJ,EK Hatchback 118KW

1991 - 1995 Petrol Engine 1.5 i 16V (EG4) EG,EH Hatchback 66KW

1999 - 2000 Petrol Engine 1.6 i Vtec (EM1) EJ,EM1 Coupe 118KW

1993 - 1995 Petrol Engine 1.6 EX (EH9) EG,EH,SR Sedan 88KW

1995 - 2000 Petrol Engine 1.6 i Vtec (EK1) EJ,EK,SO Sedan 92KW

1996 - 1999 Petrol Engine 1.6 i Vtec (EM1) EJ,EM1 Coupe 92KW

1996 - 2000 Petrol Engine 1.6 i (EJ6) EJ,EM1 Coupe 77KW

1987 - 1993 Petrol Engine 1.5 i 16V (ED3) ED,EF,SH Sedan 72KW

1987 - 1993 Petrol Engine 1.5 i 16V (ED6) EC,ED,EE,EF Hatchback 72KW

1988 - 1989 Petrol Engine 1.5 i 16V 4WD (EE2) EE,EF Wagon 72KW

1991 - 1993 Petrol Engine 1.6 si 16V (EG2, EG6) EG,EH Hatchback 90KW

1991 - 1993 Petrol Engine 1.6 si 16V (EH8) EG,EH,SR Sedan 90KW

Positions: Trailing Arm,Centre,Rear Axle,both sides
Outcome: Trailing Arm - Centre Pivot Bushing Kit
Quantity Per Vehicle: 2
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Single - 80mm OD - fitter friendly design
PAFootNote1: Single
PAFootNote2: 80mm OD
PAFootNote3: Fitter friendly design

1993 - 1995 Petrol Engine 1.5 (EG8) EG,EH,SR Sedan 67KW

Positions: both sides,Trailing Arm,Centre,Rear Axle
Outcome: Trailing Arm - Centre Pivot Bushing Kit
Quantity Per Vehicle: 2
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Single - 80mm OD - fitter friendly design
PAFootNote1: Single
PAFootNote2: 80mm OD
PAFootNote3: Fitter friendly design

1993 - 1995 Petrol Engine 1.6 (EH9) EG,EH,SR Sedan 96KW

1991 - 1995 Petrol Engine 1.5 (EG8) EG,EH,SR Sedan 74KW

1995 - 2000 Petrol Engine 1.6 (EK1) EJ,EK Hatchback 88KW

1993 - 1995 Petrol Engine 1.6 (EG2) EG,EH Hatchback 96KW

1997 - 2000 Petrol Engine 1.6 VTEC Type R (EK9) EJ,EK Hatchback 136KW

1995 - 2000 Petrol Engine 1.6 (EK1, EJ6) EJ,EK,SO Sedan 88KW

1991 - 1995 Petrol Engine 1.5 (EG4, EH2) EG,EH Hatchback 76KW

CR-V

1997 - 2000 Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 94KW

1999 - 2002 Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 108KW

INTEGRA

1999 - 2001 Petrol Engine 1.8 Type-R (DC2) DC Coupe 140KW

1993 - 1999 Petrol Engine 1.8 VTiR (DC2) DC Coupe 125KW

1993 - 2001 Petrol Engine 1.8 (DC2) DC Coupe 101KW

1993 - 2001 Petrol Engine 1.8 (DC2) DC Coupe 107KW
