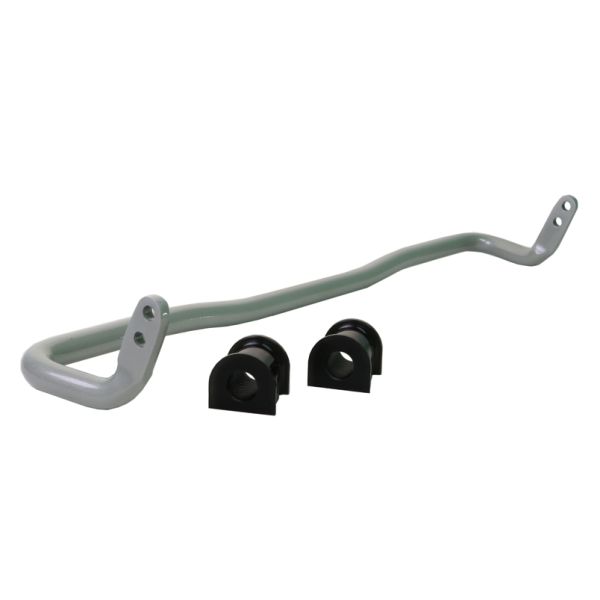

Whiteline Sway Bar Blade Heavy Duty 22mm Adjustable BHR97Z
Whiteline Sway Bar Blade Heavy Duty 22mm Adjustable BHR97Z
Special Price
$293.60
Regular Price
$379.00
You Save
23%
off RRP
Whiteline Sway Bar Blade Heavy Duty 22mm Adjustable BHR97Z
Special Price
$293.60
Regular Price
$379.00
You Save
23%
off RRP
Description
Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 22mm 2 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.
Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self lubrication for optimum friction management.
This Whiteline kit is covered by a 3 Year / 60,000kms warranty. Kit Contents: 1 Sway Bar, 2 Bushings, Grease
Compatibility
HONDA CIVIC 2016 - 2019 Petrol Engine 1.5 RS Turbo (FC1) FC_ Sedan 127KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2016 - 2019 Petrol Engine 1.8 (FC6) FC_ Sedan 104KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2017 - 2022 Petrol Engine 2.0 Type-R (FK8) FC_,FK_ Hatchback 228KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2017 - 2019 Petrol Engine 1.5 VTEC (FK7) FC_,FK_ Hatchback 127KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2017 - 2021 Petrol Engine 1.8 iVTEC (FK5) FC_,FK_ Hatchback 104KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2021 - 2026 Petrol Engine 1.5 VTEC (FL1) FL Hatchback 131KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2022 - 2026 Full Hybrid 2.0 e:HEV (FL4) FL Hatchback 135KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2022 - 2026 Petrol Engine Type-R (FL5, FL574PE) FL Hatchback 235KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
CR-V 2017 - 2023 Petrol Engine 1.5 (RW1) RW_,RT_ SUV 140KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2017 - 2023 Petrol Engine 1.5 AWD (RW2) RW_,RT_ SUV 140KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2017 - 2023 Petrol Engine 2.0 i-VTEC (RW3) RW_,RT_ SUV 113KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2019 - 2023 Full Hybrid 2.0 e-CVT Hybrid AWD (RT6) RW_,RT_ SUV 158KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2023 - 2026 Petrol Engine 1.5 VTEC TURBO (RS3) RS_,RY_ SUV 140KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2023 - 2026 Petrol Engine 1.5 VTEC TURBO AWD (RS4) RS_,RY_ SUV 140KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2023 - 2026 Full Hybrid e:HEV (RS5) RS_,RY_ SUV 152KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2025 - 2026 Full Hybrid e:HEV (RS6) RS_,RY_ SUV 135KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2023 - 2026 Plug-In Hybrid e:PHEV (RS8) RS_,RY_ SUV 135KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
ACCORD 2018 - 2026 Full Hybrid 2.0 Hybrid (CV2, CV3) CV Sedan 158KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2017 - 2026 Petrol Engine 1.5 iVTEC (CV1) CV Sedan 138KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2019 - 2026 Full Hybrid 2.0 iVtec Hybrid Flex (CV3) CV Sedan 107KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
2019 - 2026 Petrol Engine 1.5 VTEC (CV1) CV Sedan 140KW
Positions: Rear AxleOutcome: Sway Bar - AssemblyQuantity Per Vehicle: 1Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARSProduct Fitment Note: 22mm 2 Point AdjustablePAFootNote1: 22mm 2 Point Adjustable
Specifications
Diameter [mm]: 22
Diameter [inch]: 7/8
Diameter [inch]: 0.866
%Chart: BL-281
On Car Adjustable: 2 point adjustable
Material: Solid spring steel
Product Attribute: Bushing - Resistance
Product Attribute: Bushing - Lubricant
Product Attribute: Bushing - Knurling
Product Attribute: Finish - Powder Coated
Product Attribute: Sway Bar - Performance
Product Attribute: Sway Bar - Size
Product Attribute: Sway Bar - Adjustable
Product Attribute: Sway Bar - Fitting Kit
Product Attribute: Sway Bar - Forged Ends
Product Attribute: Warranty - Lifetime
Weight [kg]: 2.9
Packaging width [cm]: 26
Packaging height [cm]: 10
Packaging length [cm]: 74
Warranty: lifetime warranty
