Whiteline Sway Bar Heavy Duty 30mm Fixed BTR93X

Name: Whiteline Sway Bar Heavy Duty 30mm Fixed BTR93X
Brand: Whiteline
SKU: WHITELINE-BTR93X
Price: 658.90 AUD
Availability: InStock

Whiteline Sway Bar Heavy Duty 30mm Fixed BTR93X

Special Price $658.90 Regular Price $851.00

You Save $192.10 off RRP

Description

Rear Sway Bar - 30mm Non Adjustable

Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 30mm fixed position sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.

Kits Required:	1
Warranty:	3 Year / 60,000Kms

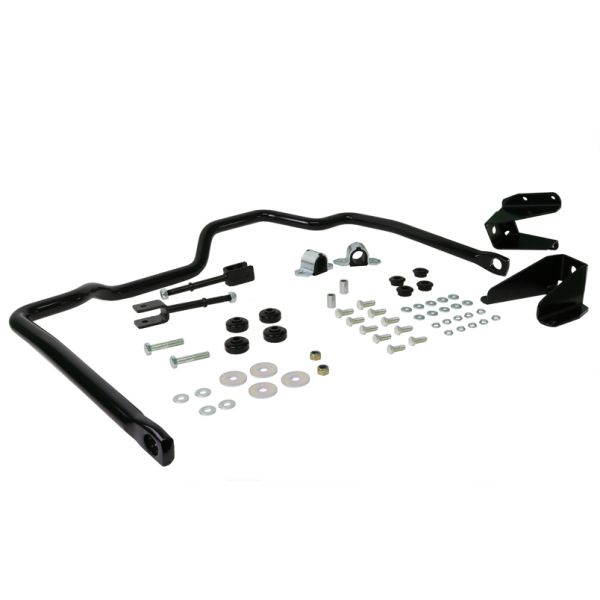

Kit Contents:	1 Sway Bar, 2 Links, 10 Bushings, 2 Saddles, 2 Brackets, 2 Tubes, 12 Bolts, 28 Washers, 2 Nuts
Service Kit:	W0410-30 W23526

Important Notes: Suits models to - 08/2016 - for models with OEM sway bar mount plates on differential

Features:

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
Sway bars are principally designed to reduce body roll or sway while cornering.
Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
Sway bar mounts utilise the latest in material formulation technology combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
Manufactured from high quality steel and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase.

Kit Specifications:

Diameter(mm)	Diameter(in)	Diameter(in) decimal	Material	Adjustment	Chart
30	1 3/16"	1.181"	Solid Spring Steel	Non adjustable	BL-281

Installation:

Install Guide	Fitment Time	Degree of Difficulty	Recommend Wheel Alignment
	2 hrs	DIY - With specialist tools

Packaged Weight and Dimensions:

Units	Weight	Length	Width	Height	Fitment Difficulty
cm/kg	14.5kg	95cm	20cm	10cm
in/lbs	31.967lbs	37"	8"	4"

Vehicle Applications:

Toyota Land Cruiser 1999-2007 - Land Cruiser 79 Series
Toyota Land Cruiser 2007-On - Land Cruiser 76, 78 Series
Toyota Land Cruiser 2007-On - Land Cruiser 79 Series

Compatibility

TOYOTA

LAND CRUISER

2001 - 2007 Diesel 4.2 TD 24V 4x4 (HDJ79R) _J7_,_JL7_ Platform/Chassis 122KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits models with OEM sway bar with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits models with OEM sway bar with bracket mount on differential

2007 - 2022 Diesel 4.5 TD 32V 4x4 (VDJ79R) _J7_,_JL7_ Platform/Chassis 151KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits models to - 08/2016 - with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits models to - 08/2016 with bracket mount on differential

2007 - 2022 Diesel 4.5 TD 32V 4x4 (VDJ76R, VDJ78R) _J7_,_JL7_ Closed Off-Road Vehicle 151KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits 78 series models to - 08/2016 - for models with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits 78 series models to - 08/2016
PAFootNote3: For models with bracket mount on differential

1999 - 2006 Petrol Engine 4.5 MPFi 4x4 (FZJ79R) _J7_,_JL7_ Platform/Chassis 165KW

2007 - 2026 Petrol Engine 4.0 4x4 (GRJ79, GRJ76, GRJ71, GRJ78) _J7_,_JL7_ Closed Off-Road Vehicle 170KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits models to - 08/2016 - with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits models to - 08/2016 with bracket mount on differential

1999 - 2026 Diesel 4.2 D MINE SPEC 4x4 (HZJ79L-TJM) _J7_,_JL7_ Platform/Chassis 94KW

2022 - 2026 Diesel 4.5 TD 32V 3.5t 4x4 (VDJL79R) _J7_,_JL7_ Platform/Chassis 151KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits models to - 08/2016 - with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits models to - 08/2016 with bracket mount on differential

2023 - 2026 Diesel 2.8 4WD (GDJL76R, GDJL78R, GDJ76L, GDJ71L, GDJ79, GDJ78,... _J7_,_JL7_ Closed Off-Road Vehicle 150KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits 78 series models to - 08/2016 - for models with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits 78 series models to - 08/2016
PAFootNote3: For models with bracket mount on differential

2022 - 2026 Diesel 4.5 TD 32V 3.5t 4x4 (VDJL76R, VDJL78R) _J7_,_JL7_ Closed Off-Road Vehicle 151KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits 78 series models to - 08/2016 - for models with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits 78 series models to - 08/2016
PAFootNote3: For models with bracket mount on differential

2023 - 2026 Diesel 2.8 D-4D 3.5t 4x4 (GDJL79R) _J7_,_JL7_ Platform/Chassis 150KW

Positions: Rear Axle
Outcome: Sway Bar - Assembly
Quantity Per Vehicle: 1
Catalog Type: SWAY BARS, STABILIZER BARS, ANTI-ROLL BARS
Product Fitment Note: 30mm Non Adjustable - suits models to - 08/2016 - with bracket mount on differential
PAFootNote1: 30mm Non Adjustable
PAFootNote2: Suits models to - 08/2016 with bracket mount on differential
