Whiteline Upper Trailing Arm Bush Kit W0608

Part No.
W0608

Whiteline Upper Trailing Arm Bush Kit W0608

Special Price $79.30 Regular Price $96.00
You Save 17% off RRP

Vehicle Specific Product

Check compatibility
Buy Now, Pay Later
4 payments of $19.83
Add to Wish List
Whiteline Upper Trailing Arm Bush Kit W0608

Whiteline Upper Trailing Arm Bush Kit W0608

Special Price $79.30 Regular Price $96.00
You Save 17% off RRP

Description

Rear Trailing Arm Upper - Arm Service Kit

Suffering uneven tyre wear, unbalanced braking or a less predictable rear end while cornering. It could be your trailing arm bushings have failed. Replace these worn parts with Whiteline bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

Kits Required:1
Warranty:Limited Lifetime Warranty

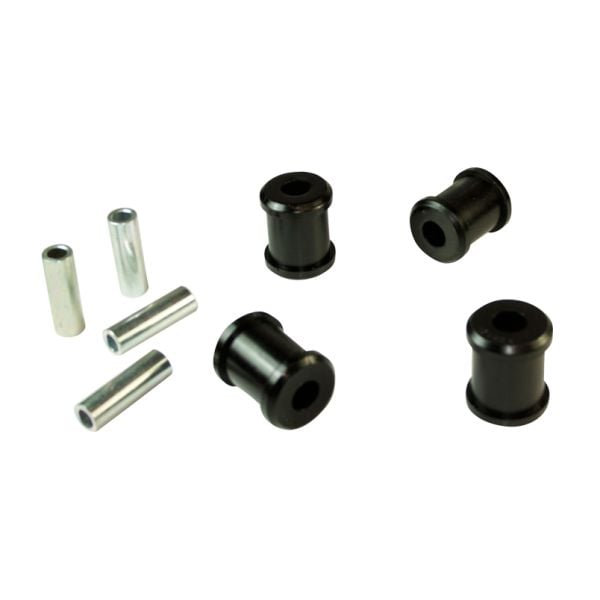

Kit Contents:4 Bushings, 4 Tubes

Important Notes: Service kit - suits Whiteline KTA103 arms

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.

Kit Specifications:

Bush Type10
Bush Qty4
OD (A)34.7 mm
ID (B)16.2 mm
L (C)50.3 mm
FL (D)8 mm
FLOD (E)40.7 mm
C/Tube QTY4
C/Tube Size16x10.2x50 mm
Similar Bushing Size

Installation:

Install GuideFitment TimeDegree of DifficultyRecommend Wheel Alignment
2 hrsDIY - With specialist tools

Press Sleeve # (IN)Press Plate # (IN)Press Sleeve # (OUT)Press Plate # (OUT)Support Sleeve #Press Plate #Threaded Rod #Press In/Out Kit
N/AEVEN B02EVEN A05ODD AM10WTK001

Use the above press Sleeves, Plates and Rods from the Whiteline Press In/Out kit WTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Whiteline bushings.

Packaged Weight and Dimensions:

UnitsWeightLengthWidthHeightFitment Difficulty
cm/kg0.39kg7cm14cm20cm
in/lbs0.86lbs3"6"8"

Vehicle Applications:

  • Holden Calais 1985-1988 - Calais VK, VL Sedan
  • Holden Calais 1988-1988 - Calais VL Wagon
  • Holden Calais 1988-1991 - Calais VN
  • Holden Commodore 1978-1988 - Commodore VB, VC, VH, VK, VL Wagon (Incl HDT)
  • Holden Commodore 1978-1988 - Commodore VB, VC, VH, VK, VL Sedan (Incl HDT)
  • Holden Commodore 1988-1993 - Commodore VN, VP, VG Wagon and UTE
  • Holden Commodore 1988-1993 - Commodore VN, VP Sedan
  • Holden Commodore 1993-2000 - Commodore VR, VS Wagon and UTE
  • Holden Commodore 1993-1997 - Commodore VR, VS Sedan
  • HSV ClubSport 1989-1991 - ClubSport VN
  • HSV ClubSport 1993-1997 - ClubSport VR, VS Wagon
  • HSV Commodore 1988-1989 - Commodore Group A VL
  • HSV Commodore 1989-1991 - Commodore VN, VP
  • HSV Commodore 1989-1993 - Commodore Group A VN
  • HSV Maloo 1990-1993 - Maloo VG, VP
  • HSV Maloo 1993-2000 - Maloo VR, VS
  • HSV Manta 1995-1997 - Manta VS Wagon
  • Toyota Lexcen 1989-1993 - Lexcen T1 Wagon
  • Toyota Lexcen 1989-1993 - Lexcen T1 Sedan Solid Axle
  • Toyota Lexcen 1993-1997 - Lexcen T2 Wagon
  • Toyota Lexcen 1993-1997 - Lexcen T2 Sedan Solid Axle
