Whiteline Leaf Spring Shackle Bush Kit W73391

Name: Whiteline Leaf Spring Shackle Bush Kit W73391
Brand: Whiteline
SKU: WHITELINE-W73391
Price: 43.02 AUD
Availability: InStock

Part No.

W73391

Whiteline Leaf Spring Shackle Bush Kit W73391

Add to Compare

Special Price $43.02 Regular Price $47.80

You Save 10% off RRP

Vehicle Specific Product

Check compatibility

Buy Now, Pay Later

4 payments of $10.76

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Whiteline Leaf Spring Shackle Bush Kit W73391

Special Price $43.02 Regular Price $47.80

You Save 10% off RRP

Description

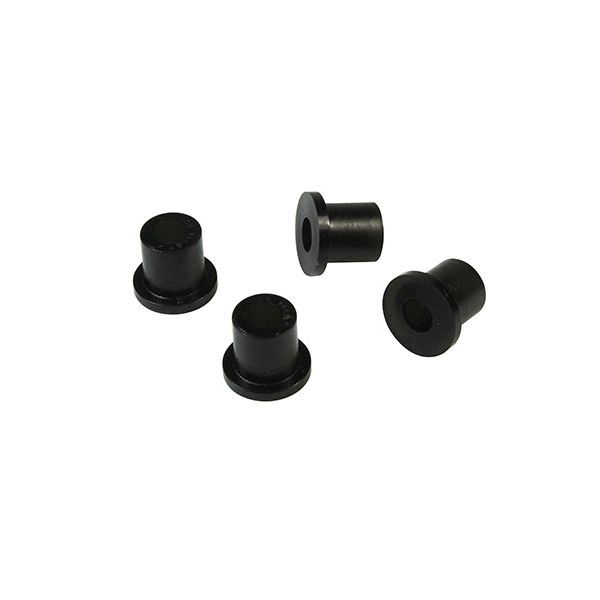

Rear Leaf Spring - Rear Eye and Shackle Bushing Kit

A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

Kits Required:	2
Warranty:	Limited Lifetime Warranty
Kit Contents:	4 Bushings

Features:

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

Kit Specifications:

Bush Type	Bush Qty	OD A	ID B	L C	FL D	FLOD E	C/Tube QTY	C/Tube Size	Similar Bushing Size
1	4	22.2 mm	12.8 mm	26.5 mm	4.2 mm	32 mm

Installation:

Install Guide	Fitment Time	Degree of Difficulty	Recommend Wheel Alignment
	2 hrs	DIY - Do it yourself

Press Sleeve # (IN)	Press Plate # (IN)	Press Sleeve # (OUT)	Press Plate # (OUT)	Support Sleeve #	Press Plate #	Threaded Rod #	Press In/Out Kit
N/A	N/A	N/A	N/A	03	ODD A	M12	WTK001

Use the above press Sleeves, Plates and Rods from the Whiteline Press In/Out kit WTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Whiteline bushings.

Packaged Weight and Dimensions:

Units	Weight	Length	Width	Height	Fitment Difficulty
cm/kg	0.07kg	7cm	14cm	20cm
in/lbs	0.154lbs	3"	6"	8"

Vehicle Applications:

MG MGA 1960-1962 - MGA MK2
MG MGB 1962-1980 - MGB
MG MGB 1965-1980 - MGB GT

Compatibility

MG

MGB

1962 - 1980 Petrol Engine 1.8 (N3) Convertible 70KW

Positions: Rear Axle,both sides,Lower,Rear
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1962 - 1980 Petrol Engine 1.8 (N3) Convertible 68KW

Positions: Rear,Rear Axle,both sides,Lower
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1962 - 1980 Petrol Engine 1.8 Convertible 71KW

Positions: Rear Axle,both sides,Lower,Rear
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

MGB GT

1965 - 1980 Petrol Engine 1.8 (D3) Coupe 68KW

Positions: Rear Axle,both sides,Lower,Rear
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1965 - 1980 Petrol Engine 1.8 (D3, GHD5L) Coupe 70KW

Positions: both sides,Lower,Rear,Rear Axle
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1972 - 1977 Petrol Engine 3.5 (D1) Coupe 101KW

Positions: Rear,Rear Axle,both sides,Lower
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1975 - 1980 Petrol Engine 1.8 Coupe 71KW

Positions: Rear,Rear Axle,both sides,Lower
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1967 - 1969 Petrol Engine 1.8 Coupe 69KW

Positions: Rear,Rear Axle,both sides,Lower
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

MGA

1960 - 1962 Petrol Engine 1.6 Coupe 70KW

Positions: Rear,Rear Axle,both sides,Lower
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1961 - 1962 Petrol Engine 1.6 (GHN) HDC,GHN,HAD Convertible 69KW

Positions: both sides,Lower,Rear,Rear Axle
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1959 - 1961 Petrol Engine 1.6 (HDC) HDC,GHN,HAD Convertible 59KW

Positions: Rear Axle,both sides,Lower,Rear
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER

1959 - 1962 Petrol Engine 1.6 Coupe 67KW

Positions: Rear,Rear Axle,both sides,Lower
Outcome: Leaf Spring - Rear Eye Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
