Whiteline Leading Arm to Diff Bush Kit W81730E

Name: Whiteline Leading Arm to Diff Bush Kit W81730E
Brand: Whiteline
SKU: WHITELINE-W81730E
Price: 210.80 AUD
Availability: InStock

Part No.

W81730E

Whiteline Leading Arm to Diff Bush Kit W81730E

Add to Compare

Special Price $210.80 Regular Price $231.00

You Save 9% off RRP

Vehicle Specific Product

Check compatibility

Buy Now, Pay Later

4 payments of $52.70

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Whiteline Leading Arm to Diff Bush Kit W81730E

Special Price $210.80 Regular Price $231.00

You Save 9% off RRP

Description

Front Leading Arm - To Differential Bushing Kit Offset

Raised your 4x4 and suffering vague steering or worse high speed tyre vibration's? Whiteline's caster correction kit features offset mounting points providing improved caster geometry for high precision steering and improved tyre performance.

Kits Required:	1
Warranty:	Limited Lifetime Warranty

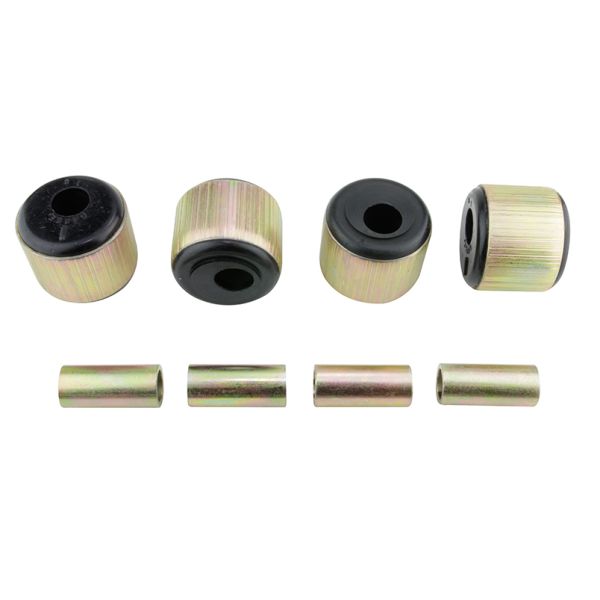

Kit Contents:	4 Shell Bushings, 4 Tubes

Important Notes: Performance Alignment Kit - 2.0deg caster correction - non voided design economy option

Features:

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Kit Specifications:

Bush Type	Bush Qty	OD AA/AB	ID B	L C	FL D	FL OD	C/Tube QTY	C/Tube Size	Similar Bushing Size
16	4	60 mm	21.5 mm	50 mm	5 mm	56.5 mm	4	22.2x16.2x49.5 mm

Alignment Type	Adjustment Type	On Car Adjustable	Adjustment Notes
Caster	Offset	No	Adds +2.0deg

Installation:

Install Guide	Fitment Time	Degree of Difficulty	Recommend Wheel Alignment
	3 hrs	Trade Specialist	Yes

Press Sleeve # (IN)	Press Plate # (IN)	Press Sleeve # (OUT)	Press Plate # (OUT)	Support Sleeve #	Press Plate #	Threaded Rod #	Press In/Out Kit
08	EVEN A	07	ODD A	10	EVEN A	M16	WTK001

Use the above press Sleeves, Plates and Rods from the Whiteline Press In/Out kit WTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Whiteline bushings.

Packaged Weight and Dimensions:

Units	Weight	Length	Width	Height	Fitment Difficulty
cm/kg	1.18kg	10cm	16cm	26cm
in/lbs	2.601lbs	4"	6"	10"

Vehicle Applications:

Ford Maverick 1988-1994 - Maverick DA Wagon
Nissan Patrol 1988-1997 - Patrol GQ Y60 Wagon
Nissan Patrol 1988-1997 - Patrol GQ Y60 Cab Chassis (Coil Spring Front and Rear)
Nissan Patrol 1997-2016 - Patrol GU Y61 Wagon
Nissan Patrol 1999-2016 - Patrol GU Y61 Cab Chassis (Coil Spring Front and Leaf Spring Rear)
Nissan Patrol 1999-2016 - Patrol GU Y61 Cab Chassis (Coil Spring Front and Rear)
Toyota Land Cruiser 1990-1996 - Land Cruiser 70 Series KZJ, PZJ
Toyota Land Cruiser 1990-1998 - Land Cruiser 80 Series
Toyota Land Cruiser 1998-2007 - Land Cruiser 105 Series

Compatibility

FORD AUSTRALIA

MAVERICK

1988 - 1994 Petrol Engine 4.2 (KY60, WGY60) DA Closed Off-Road Vehicle 125KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.0deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.0deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1988 - 1994 Diesel 4.2 D (KRY60, WRGY60) DA Closed Off-Road Vehicle 85KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.0deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.0deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

NISSAN

PATROL

1987 - 1997 Diesel 4.2 D All-wheel Drive (CRGY60, KY60, KRY60, WRGY60) Y60,GR,GQ,260L Closed Off-Road Vehicle 85KW

Positions: Front Axle,both sides,Front
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.0deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.0deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1988 - 1997 Diesel 2.8 TD (Y60A) Y60,GR,GQ,260L Closed Off-Road Vehicle 85KW

2007 - 2016 Diesel 3.0 DTi Y61,GU Closed Off-Road Vehicle 118KW

2000 - 2007 Diesel 3.0 DTi Y61,GU Closed Off-Road Vehicle 116KW

1998 - 2000 Diesel 2.8 TDiC (Y61) Y61,GR_,GU Closed Off-Road Vehicle 96KW

1998 - 2003 Diesel 4.2 D 4x4 (Y61) Y61,GR_,GU Closed Off-Road Vehicle 91KW

2007 - 2016 Diesel 3.0 D 4x4 (TY61) Y61,TY61,GU Platform/Chassis 118KW

1999 - 2002 Diesel 4.2 D 4x4 (TY61) Y61,TY61,GU Platform/Chassis 91KW

1999 - 2006 Diesel 4.2 D 4x4 (TY61) Y61,TY61,GU Platform/Chassis 114KW

1988 - 2000 Diesel 4.2 D (Y60) MQ,MK,GQ Platform/Chassis 85KW

1988 - 1997 Petrol Engine 4.2 Carb (Y60) MQ,MK,GQ Platform/Chassis 125KW

1997 - 2001 Petrol Engine 4.5 (Y61) Y61,GR_,GU Closed Off-Road Vehicle 145KW

2001 - 2012 Petrol Engine 4.8 (Y61) Y61,GR_,GU Closed Off-Road Vehicle 185KW

1999 - 2007 Diesel 4.2 D Y61,GU Closed Off-Road Vehicle 114KW

1988 - 1997 Petrol Engine 4.2 Efi 4WD (CGY60, WGY60) Y60,GR,GQ,260L Closed Off-Road Vehicle 129KW

1987 - 1997 Diesel 4.2 D 4x4 (CRGY60, VRY60, VRGY60, WRY60, WRGY60) Y60,GR,GQ,260L Closed Off-Road Vehicle 92KW

1990 - 1997 Petrol Engine 3.0 4WD Y60,GR,GQ,260L Closed Off-Road Vehicle 100KW

1988 - 1995 Petrol Engine 4.2 Carb 4WD (CGY60, KY60, WGY60) Y60,GR,GQ,260L Closed Off-Road Vehicle 125KW

1988 - 1997 Petrol Engine 4.2 Efi (Y60) MQ,MK,GQ Platform/Chassis 129KW

TOYOTA

LAND CRUISER

1990 - 1997 Diesel 4.2 TD (HDJ80, HDJ81) _J8_ Closed Off-Road Vehicle 123KW

Positions: Front Axle,both sides,Front
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1993 - 1996 Diesel 3.0 PRADO IMPORT (KZJ70_, KZJ73_, KZJ77_, KZJ78_,... KZJ78,KZJ70,KZJ73,KZJ77 Closed Off-Road Vehicle 92KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1995 - 1997 Diesel 4.2 TD 24V (HDJ80_, HDJ80, HDJ81V) _J8_ Closed Off-Road Vehicle 125KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1992 - 1997 Diesel 4.2 TD (HDJ80) _J8_ Closed Off-Road Vehicle 118KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1990 - 1991 Diesel 3.5 D 4x4 (PZJ70, PZJ73, PZJ70RV) _J7_,_JL7_ Closed Off-Road Vehicle 72KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2001 - 2007 Diesel 4.2 TD 24V 4x4 (HDJ78, HDJ78R) _J7_,_JL7_ Closed Off-Road Vehicle 122KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2001 - 2007 Diesel 4.2 TD 24V 4x4 (HDJ79R) _J7_,_JL7_ Platform/Chassis 122KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1998 - 2007 Diesel 4.2 D (HZJ105) _J1_,_J10_ Closed Off-Road Vehicle 96KW

Positions: Front Axle,both sides,Front
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2007 - 2022 Diesel 4.5 TD 32V 4x4 (VDJ79R) _J7_,_JL7_ Platform/Chassis 151KW

Positions: Front Axle,both sides,Front
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2007 - 2022 Diesel 4.5 TD 32V 4x4 (VDJ76R, VDJ78R) _J7_,_JL7_ Closed Off-Road Vehicle 151KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1999 - 2006 Petrol Engine 4.5 MPFi 4x4 (FZJ79R) _J7_,_JL7_ Platform/Chassis 165KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1998 - 2006 Petrol Engine 4.5 MPFi 4x4 (FZJ78R) _J7_,_JL7_ Closed Off-Road Vehicle 165KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1998 - 2002 Petrol Engine 4.5 i (FZJ105) _J1_,_J10_ Closed Off-Road Vehicle 165KW

Positions: Front Axle,both sides,Front
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2007 - 2026 Petrol Engine 4.0 4x4 (GRJ79, GRJ76, GRJ71, GRJ78) _J7_,_JL7_ Closed Off-Road Vehicle 170KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1992 - 1997 Petrol Engine 4.5 EFi 4WD (FZJ80) _J8_ Closed Off-Road Vehicle 158KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1990 - 1992 Diesel 3.5 D 4x4 (PZJ73_V, PZJ73RV) _J7_ Open Off-Road Vehicle 72KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1990 - 1992 Petrol Engine 4.0 (FJ80) _J8_ Closed Off-Road Vehicle 110KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1990 - 1992 Petrol Engine 4.0 EFi (FJ80) _J8_ Closed Off-Road Vehicle 112KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1990 - 1997 Diesel 4.2 D (HZJ80) _J8_ Closed Off-Road Vehicle 94KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1990 - 1992 Diesel 4.2 TD (HDJ80) _J8_ Closed Off-Road Vehicle 115KW

Positions: Front Axle,both sides,Front
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

1999 - 2026 Diesel 4.2 D MINE SPEC 4x4 (HZJ79L-TJM) _J7_,_JL7_ Platform/Chassis 94KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2022 - 2026 Diesel 4.5 TD 32V 3.5t 4x4 (VDJL79R) _J7_,_JL7_ Platform/Chassis 151KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2023 - 2026 Diesel 2.8 D-4D 3.5t 4x4 (GDJL76R, GDJL78R, GDJ76L, GDJ71L) _J7_,_JL7_ Closed Off-Road Vehicle 150KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2022 - 2026 Diesel 4.5 TD 32V 3.5t 4x4 (VDJL76R, VDJL78R) _J7_,_JL7_ Closed Off-Road Vehicle 151KW

Positions: Front,Front Axle,both sides
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

2023 - 2026 Diesel 2.8 D-4D 3.5t 4x4 (GDJL79R) _J7_,_JL7_ Platform/Chassis 150KW

Positions: both sides,Front,Front Axle
Outcome: Radius Arm - To Differential Bushing Kit
Quantity Per Vehicle: 1
Catalog Type: BUSHINGS AND OTHER
Product Fitment Note: Performance Alignment - 2.5deg caster correction - suits lifted vehicles to 50mm
PAFootNote1: Performance Alignment
PAFootNote2: 2.5deg caster correction
PAFootNote3: Suits lifted vehicles to 50mm

Specifications

Cross Reference

Shopping Cart

Whiteline Leading Arm to Diff Bush Kit W81730E

Whiteline Leading Arm to Diff Bush Kit W81730E

Buy Now, Pay Later

Whiteline Leading Arm to Diff Bush Kit W81730E

Description

Compatibility

FORD AUSTRALIA

MAVERICK

NISSAN

PATROL

TOYOTA

LAND CRUISER

Specifications

Cross Reference

Nolathane

Whiteline

SuperPro

Revolution

PEDDERS

Reviews

Selected vehicle

Please select your vehicle

Whiteline Leading Arm to Diff Bush Kit W81730E

Whiteline Leading Arm to Diff Bush Kit W81730E

Buy Now, Pay Later

Whiteline Leading Arm to Diff Bush Kit W81730E

Description

Compatibility

FORD AUSTRALIA

MAVERICK

NISSAN

PATROL

TOYOTA

LAND CRUISER

Specifications

Cross Reference

Nolathane

Whiteline

SuperPro

Revolution

PEDDERS

Reviews

Selected vehicle
