Whiteline Radius Arm to Chassis Bush Kit W82479

Part No.
W82479

Whiteline Radius Arm to Chassis Bush Kit W82479

Special Price $75.75 Regular Price $101.00
You Save 25% off RRP

Vehicle Specific Product

Check compatibility
Buy Now, Pay Later
4 payments of $18.94
Add to Wish List
Whiteline Radius Arm to Chassis Bush Kit W82479

Whiteline Radius Arm to Chassis Bush Kit W82479

Special Price $75.75 Regular Price $101.00
You Save 25% off RRP

Description

Front Strut Rod - To Control Arm Bushing Kit

Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

Kits Required:1
Warranty:Limited Lifetime Warranty

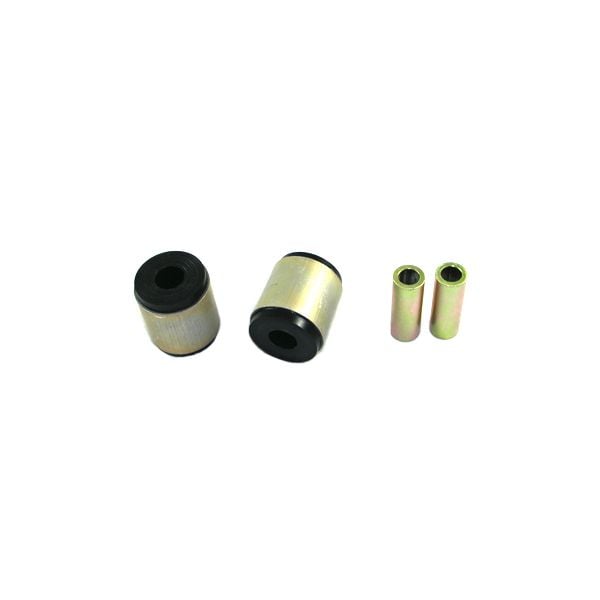

Kit Contents:2 Shell Bushings, 2 Tubes

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.

Kit Specifications:

Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16246.6 mm19 mm53 mm41 mm219x12.2x52 mm

Installation:

Install GuideFitment TimeDegree of DifficultyRecommend Wheel Alignment
2 hrsDIY - With specialist toolsYes

Press Sleeve # (IN)Press Plate # (IN)Press Sleeve # (OUT)Press Plate # (OUT)Support Sleeve #Press Plate #Threaded Rod #Press In/Out Kit
05ODD A04EVEN A07ODD AM12WTK001

Use the above press Sleeves, Plates and Rods from the Whiteline Press In/Out kit WTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Whiteline bushings.

Packaged Weight and Dimensions:

UnitsWeightLengthWidthHeightFitment Difficulty
cm/kg0.44kg7cm14cm20cm
in/lbs0.97lbs3"6"8"

Vehicle Applications:

  • BMW 6 Series 1976-1989 - 6 Series E24
