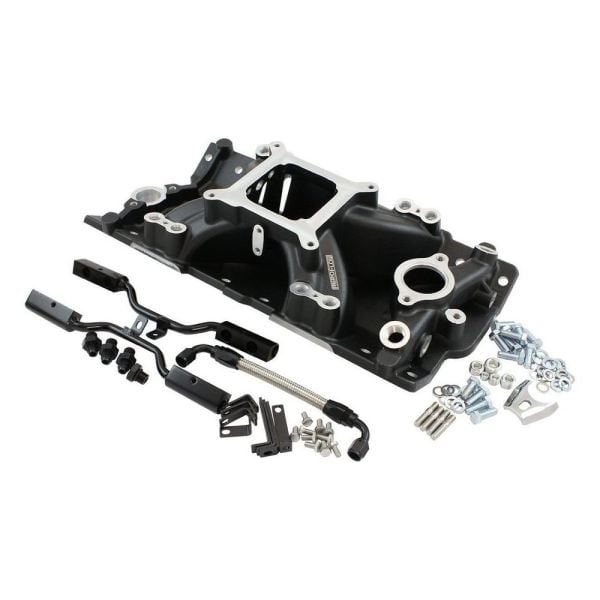

• Fits SmallBlock Chevy 262-400 Cubic InchEngines.
• Single Plane Configuration.
• EFI Applications ONLY.
• Suits 14mm Full Length Injectors (60.65mm) or 14mm Short Length injectors (33.60mm).
• RPM operating range - 2500 to 7500.
• Black Finish.

Manifold Specifications

• Square bore carburettor pad
• Overall height (Carb pad to bottom of manifold) is 134mm
• PortSize: 1.20" x 1.92"
• Intake manifold gasket, Fel Pro 1205
• 5/16-18" carburettor studs (x4)
• 5/16-18" mounting holes (x2)
• 3/8-16" distributor hold down mountinghole (x1)
• 3/8-16" accessory mounting holes (x3)
• 1/2" NPT port(x1)
• 3/8" NPT ports (x3)
• 1/4" NPT port (x1)
• 1/8"NPT port (x1)

Intake Manifold Includes

• 12 x 3/8"-16 Hex Screws (25mm UHL)
• 12 x 3/8" Flat Washers and Spring Washers
• - 4 x 1/4" carburettor studs
• - 1 x Distributor hold down clamp
• 1 x 1/2" NPT Steel Port Plug
• 2 x 3/8" NPT Steel Port Plug
• 1 x 1/4" NPT Steel Port Plug
• 1 x 1/8" NPT Steel Port Plug

Fuel Rail Kit includes

• 2 x Two Fuel Rails (-8ORB)
• 1 x -6AN cross over 200 series PTFE braided line and two 90 degreenon full flow fittings
• -3 x -6an to -8ORB fittings
• 1 x -8ORB hex port plug
• 4 x long mounting brackets
• 4 x short mounting brackets
• 10 x 1/4-20" hex screws (12mm UHL)
