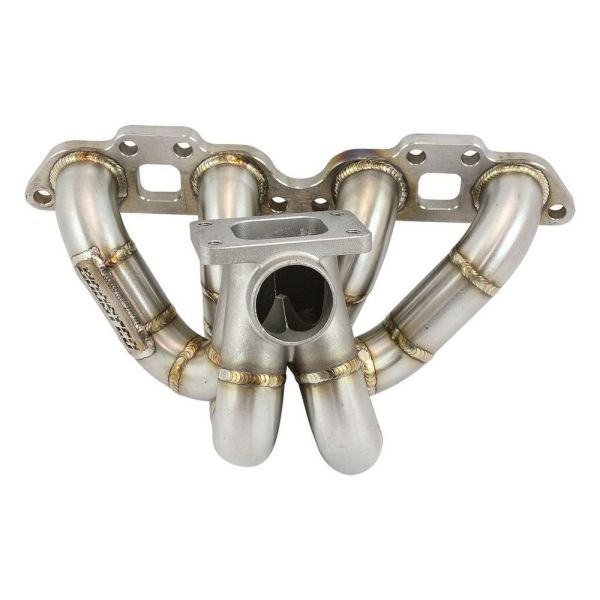

Model - Nissan SR20 turbo stainless steampipe manifold.

Turbo Collector Flange - T3 single entry.

Mounting Location - High Mount.

Turbocharger Style - GT30/GT35 style (Boosted 5455 up to Boosted 6862 in T3 flange).

Wastegate Flange - Single 44mm external wastegate.

Aeroflow Performance thick wall stainless steel turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into the merge collector which are perfectly matched to the Boosted range of turbochargers. the merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from the turbo manifold.

Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent stainless steel with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, and the position the wastegate sits in.

Aeroflow do recommend to have this manifold either wrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.

The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
